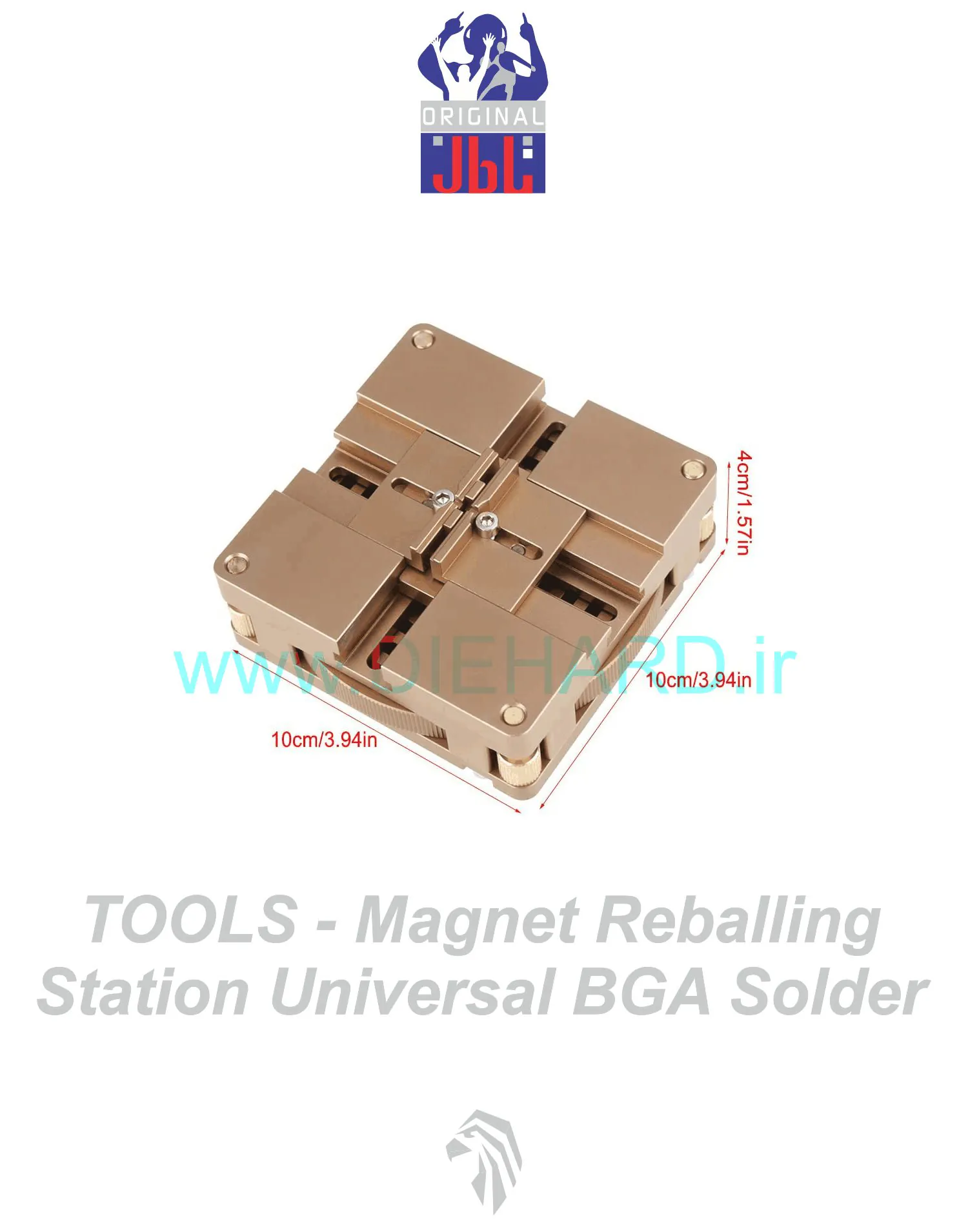

The new self-locking BGA reballing station (patent product)

It is made of Aluminum alloy structure, lightweight and durable structure
We used the old models have such an experience: It is too much trouble to adjust the position of the chips,
need to repeatedly adjust the folder block in order to align the center position, time-consuming and laborious.

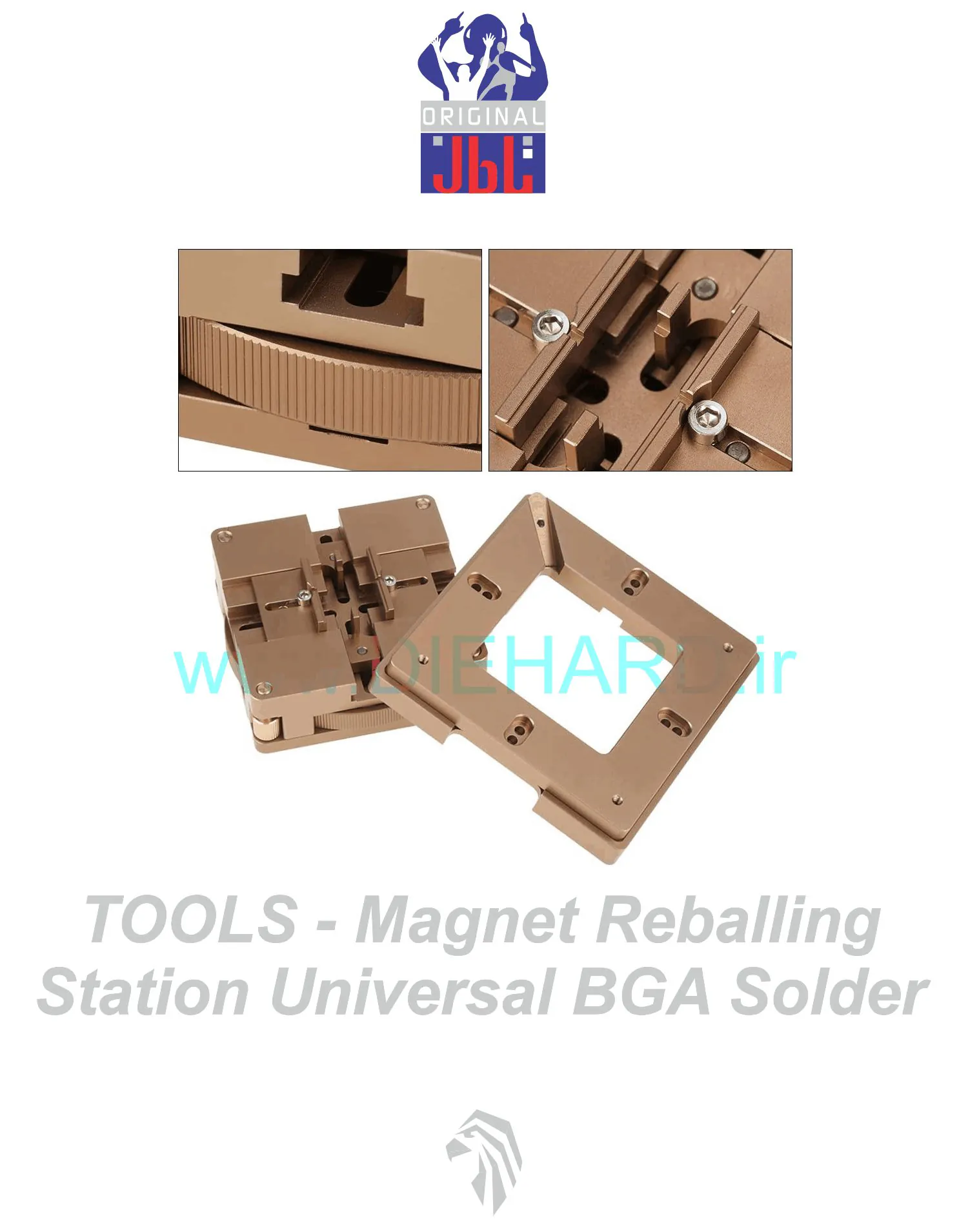

This New reballing station is with automatic centering function, rotating spiral disk, four folders block locking chips without a single adjustment,
positioning accuracy standards, clamping speed, high efficiency!

Dimensions: 80mm *80mm and 90mm * 90mm.

Advantages:
1. For both 80mm and 90mm stencils
2. No need use wrench to adjust the height, just use finger up and down
3. Suitable for rectangle chips (picture below), and very small chip, such as 4*4mm
4. High precision for adjusting the chip, magnet inside,  auto fix, more fast and convenient .

Simultaneous Adjustment on 4 Sides
Auto Locking
Accurate Position
Easy Operation
Rotator
Compatible with 80mm and 90mm Stencils

Packing inside:
80/90MM universal jig …1pcs
Allen key …1pcs
