قطعات * آی سی کپی XBOX360 RUN 1.1

Item: قطعات * آی سی کپی XBOX360 RUN 1.1
Rating: 5
Author: AMIR

دسته: قطعات کنسول XBOX, مایکروسافت ایکس باکس

112,500 تومان

100 عدد در انبار

مقایسه

افزودن به علاقه مندی

13 نفر در حال مشاهده این محصول هستند!

تحویل اکسپرس

حمل رایگان سفارشات بالای 1 میلیون تومان

پرداخت امن

امکان پرداخت انلاین یا پرداخت حضروی درب منزل

ضمانت اصالت کالا

امکان پرداخت انلاین یا پرداخت حضروی درب منزل

7 روز گارانتی بازگشت وجه

امکان پرداخت انلاین یا پرداخت حضروی درب منزل

نقد و بررسی‌ها

هیچ دیدگاهی برای این محصول نوشته نشده است.

اولین کسی باشید که دیدگاهی می نویسد “قطعات * آی سی کپی XBOX360 RUN 1.1”

قطعات – آی سی کپی – XBOX 360 RUN 1.1

فروش لوازم اورجینال ایکس باکس و لوازم یدکی لازم برای تعمیر ایکس باکس

پخش کننده اصلی و بی واسطه در فروشگاه اینترنتی DIEHARD – فروش لوازم جانبی PS1/PS2/PS3/PS4/PS5/XBOX 360/XBOX ONE/NINTENDO DC

خرید پستی و اینترنتی…

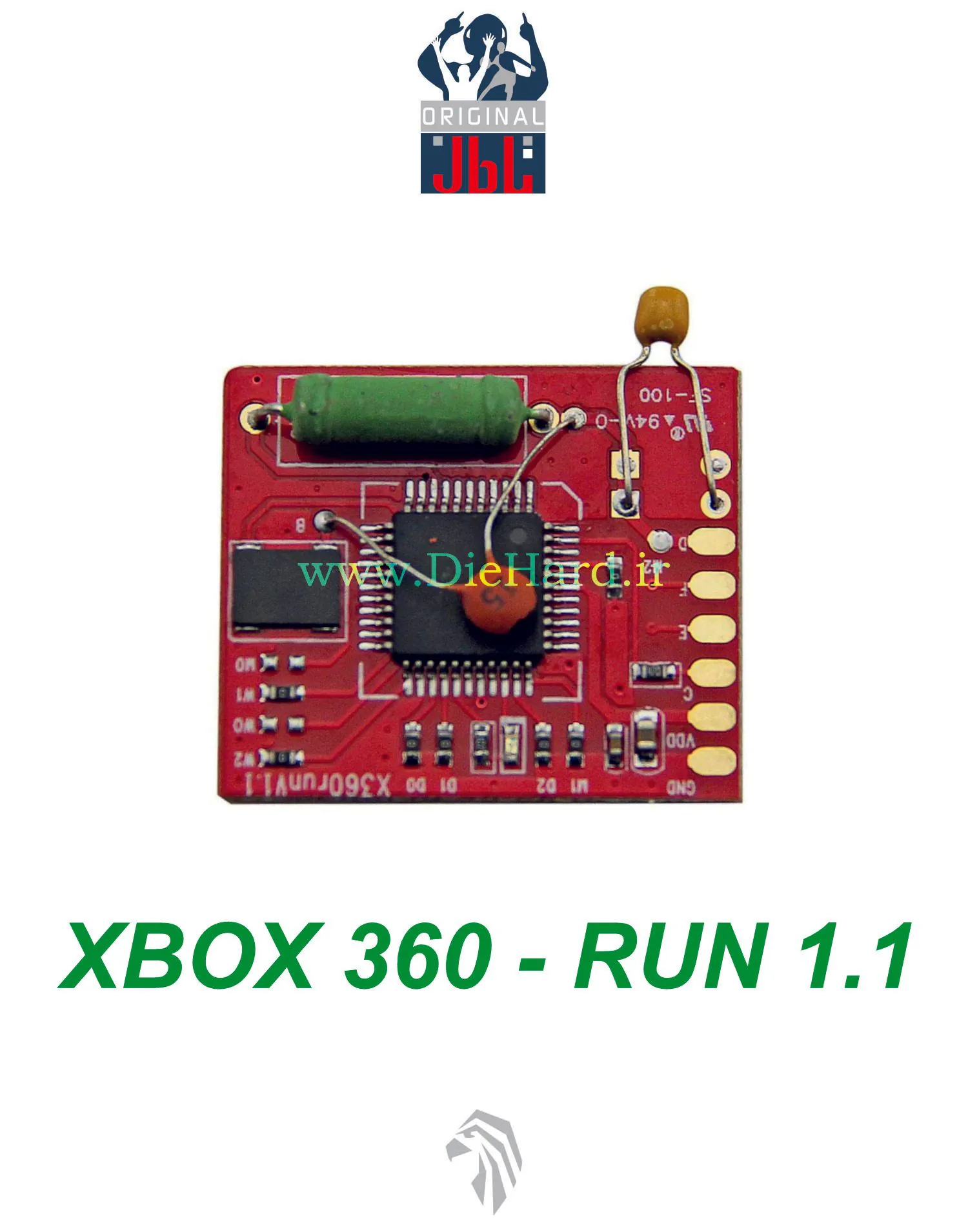

New RGH XBOX360 RUN 1.1 Glitcher Red Board with 96MHZ Crystal Oscillator for XBOX360 Slim

High Light:
1. Use for xbox360 To-shiba nand is fast
2.NEW RGH X360RUN 1.1 version PCB same STONE USE

Note:

Red Board(X360Run1.1)

be fit for Corona（Include the Xbox360 machine produced after Nov. 2013 and Corona machine of To-shiba NandFlash on board）

Attention:The Xbox360 machine of Windbond memory on board，produced after Nov. 2013,need change the Windbond memory chip first.

Description:

X360Run Perfectly carcks XBOX360 slim

1.It is perfectly compatible with all XBOX360 Slim machine
2.It has the more precisely pulse-attack boot time in an instant.
3.X360Run Glitcher Board Instruction (SLIM Trinity10.83A/9.6A)

4.It used the high performance and high frequency pulse-attack chip

5.It is comprehensive to upgrade and replace the Matrix Glitcher and Xecuter Coolrunner Glitcher Board.

Main Features:
1.Boot time almost in 30 seconds.

2.Support Corona and Trinity slim machine.

3.So far the Minimum PCB size, easily to install and fix

4.So far the most simple installation and debugging, with the two pulse single line with 4-7cm
5.So far the least external components, using the high quality components to manufacture,perfect design and high reliability

6.By jumping the wire to make it short, yon can have machine selection and parameter adjustment ,it does not need to program by software.
7.High Performance of the pulse-attack chip, the working frequency can reach at 96MHz, the more precisely pulse-attack, and can be refined to adjust the attacking parameter.

X360Run1.1 (Slim Trinity) Glitcher Board Instruction
Ⅰ.The th-eory of X360Run Glitcher Board：
The X360Run send out a confirm width of pulse to XBOX360 slim machine. For different type XBOX360 slim machine have different type pulse time point and width.

Ⅱ.The X360Run Glitcher Board and trimming switch:

Ⅲ.Configuration and trimming description：
The user must choose a different configuration options according to the different type XBOX360 slim machine.
The user can use the factory default setting of the X360Run
Glitcher board.the user can use the trimmability switch to get a better time pulse,and this change will make XBOX360 machine achieve the best effective.
Please choice default setting in the following three table，other setting only for test by user choice。Please use “Corona Mode 1” for
Corona machine of To-shiba NandFlash on board and produced after Nov. 2013(need change the Windbond memory chip first)。
The Corona Mode2 for test by user choice。
The Compatible and function of Corona X360run Yellow-Board Mode same as X360Run Yellow Board。
X360Run Glitcher board have four type switch and trimming adjustable setting:
(S: short the jumper pad , O:open the jumper pad)

1. The XBOX360 slim machine type setting

XBOX360 Type	Timing pulse	M2	M1	M0	Monolithic Capacitor CD	Ceramics Capacitors CO	Command
Corona	forward	S	S	S	330P	15P	Corona Mode 1
Corona	default	S	S	0	330P	15P	Corona Mode 1
Corona	Add-ons delay	S	0	S	330P	15P	Corona Mode 2
Corona	default	S	0	0	330P	15P	Corona Mode 2
Trinity10.83A	default	0	S	S	150P	20P	Compatible X360Run Yellow-Board Mode
Trinity9.6A	default	0	S	0	220P	25P
Corona	Add-ons delay	0	0	S	330P	15P
Corona	default	0	0	0	330P	15P

According to the different type XBOX360 machine , set the according M0,M1,M2 jumper pad with S or O follow this table. The value of capacitors about CD and CO must set correct too . the factory default value is Corona Mode 1:SSO.

2. Pulse time delay trimming setting

Delay trimming	D2	D1	D0	unit
	0	S	S	-3
	0	S	0	-2
	0	0	S	-1
	0	0	0	default
Corona Mode 1; Compatible X360Run Yellow-Board Corona Mode	S	S	S	1
Trinity 10.83A Trinity 9.6A	S	S	0	2
Corona Mode 2	S	0	S	3
	S	0	0	4

The pulse time can be adjust to forward(forth:-1~-3) or backward(back: 1~ 4) on the basis of the standard value.

According to the different type XBOX360 machine, set the according D0,D1,D2 jumper pad with S or O follow this table. the factory default value is Corona Mode 1/X360Run Yellow-Board Corona Mode:SSS( 1).

3. Pulse width trimming setting

width trimming	W2	W1	W0	unit
	0	S	S	-3
	0	S	0	-2
Trinity 10.83A	0	0	S	-1
Trinity 9.6A Corona Mode 2	0	0	0	default
	S	S	S	1
Corona Mode 1; Compatible X360Run Yellow-Board Corona Mode	S	S	0	2
	S	0	S	3
	S	0	0	4

The pulse width can be adjust to forward(forth:-1~-3) or backward (back: 1~ 4) on the basis of the standard value.

According to the different type XBOX360 machine, set the according W0,W1,W2 jumper pad with S or O follow this table. the factory default value is Corona Mode 1/X360Run Yellow-Board Corona Mode:SSO( 2).

4. The adjustment of resistance and capacitance in the pulse signal output ：

The D pin of X360Run Glitcher board is pulse signal output, can reduce the pulse signal strength by series resistance, the factory default value is 8.2Ώ.

The D pin of X360Run Glitcher board is pulse signal output, can produce an effect on launch XBOX360 slim machine succeed by shunt-wound differences value of Monolithic capacitance, the factory default value is CD=330pf(Corona),CD=220pf(Trinity9.6A) or CD=150pf(Trinity10.83A)

The length of two pins about CD capacitance don’t cut to short（The length of CD capacitance about 1.5cm-1.7cm）.

Attention!: if replace Monolithic capacitance,must weld the new Monolithic capacitance complete before launch XBOX360 slim machine again.

5.Wire Install：

X360Run Glitcher board have SIX wire to be connected，them are:

1. Power Wire: VDD,

2. Ground Wire: GND,

3. I2C_SCL(E),

4. I2C_SDA(F),

5. POST_OUT(C),

6. CPU_RST(D)
